Product Details:
|
| Max. Cutting Width (mm): | 3000 | Max. Cutting Thickness (mm): | 3.2 Mm |
|---|---|---|---|
| Automatic Level: | Semi-automatic | Shearing Angle: | 1.5 Degree |
| Blade Length (mm): | 3100 Mm | Backgauge Travel (mm): | 20 - 600 Mm |
| Throat Depth (mm): | 50 Mm | Key Selling Points: | Competitive Price |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Other | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Other, BLADE |
| 3MM: | 3050MM | After-sales Service Provided: | Free Spare Parts, Online Support, Video Technical Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts | Local Service Location: | United Kingdom, France, Germany, ISRAEL |
| Port: | SHANGHAI | ||
| High Light: | sheet metal shear press machine 3100mm,Large Metal Shearing Machines QH11D,mechanical metal shear 3100mm |
||

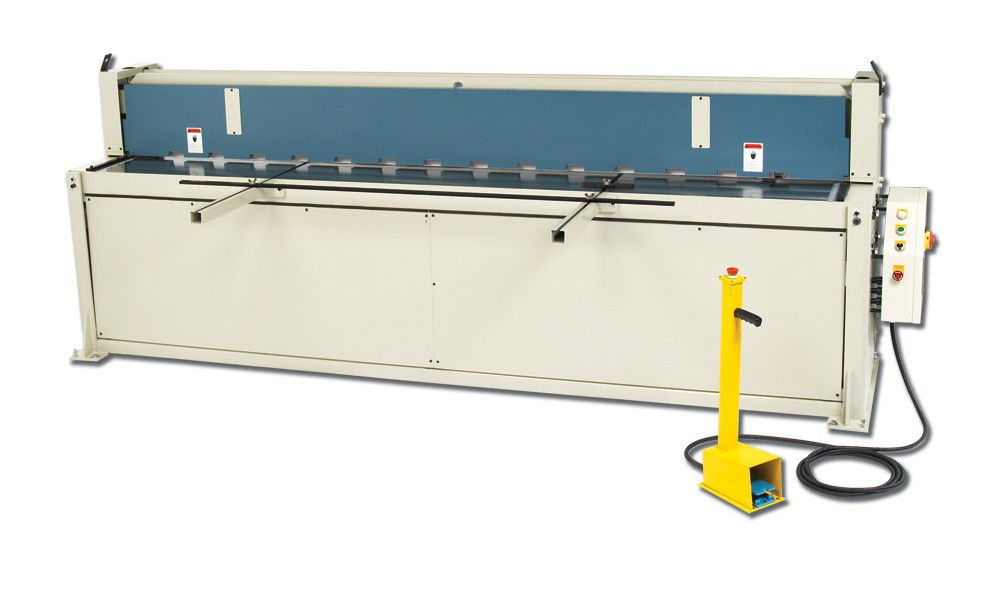

Wholesale Mechanical Shear Semi-automatic Shearng Machine
MECHANICAL SHEAR
Compared with the ordinary shearing machine, the swinging hydraulic shearing machines are mostly used in slanting cutting. It is widely used because of its simple structure, low failure rate, high shearing efficiency and no bow, warp and distortion after shearing.
During the shearing process, with the turning of the tool carrier, the shear angle and shear gap will change.
The hydraulic shearing machine is all steel welding mechanism, hydraulic transmission, vibration to eliminate stress,high strength and good rigidity.
The swinging hydraulic shearing machine adopts the main oil cylinder (fixed on the wall board) for downward shearing movement and nitrogen cylinder return, thus simplifying the hydraulic system and running more stable.
|
Max. Cutting Width (mm)
|
3000
|
|
Max. Cutting Thickness (mm)
|
3.2 mm
|
|
Automatic Level
|
Semi-automatic
|
|
Shearing Angle
|
1.5 degree
|
|
Blade Length (mm)
|
3100 mm
|
|
Backgauge Travel (mm)
|
20 - 600 mm
|
|
Throat Depth (mm)
|
50 mm
|
|
Condition
|
New
|
|
Brand Name
|
QH11D
|
|
Power (kW)
|
11 kW
|
|
Weight (KG)
|
3450 KG
|
|
Place of Origin
|
China
|
|
Voltage
|
380-400V
|
|
Dimension(L*W*H)
|
3750*2100*1400MM
|
|
Certification
|
CE
|
|
Warranty
|
1 Year
|
|
Core Components
|
Motor, Other, BLADE
|
|
3MM
|
3050MM
|
