Product Details:
|
| Voltage: | 380V,220V,380V,400V,Customizable | Dimension(l*w*h): | 3880x2150x2000 |
|---|---|---|---|
| Max. Cutting Width (mm): | 3200, 4000,6000,2500 | Key Selling Points: | High Accuracy,High Productivity,Automatic |
| Control System: | Estun E21 NC Control | Cutting Material: | Metal Stainless Steel Carbon Steel Aluminum |
| Product Name: | Cnc Hydraulic Shearing Machine | Type: | QC12K-8x3200,Swing Beam Shear |
| High Light: | hydraulic metal plate shearing machine,qc12y-4*2500,12 guillotine shear |
||

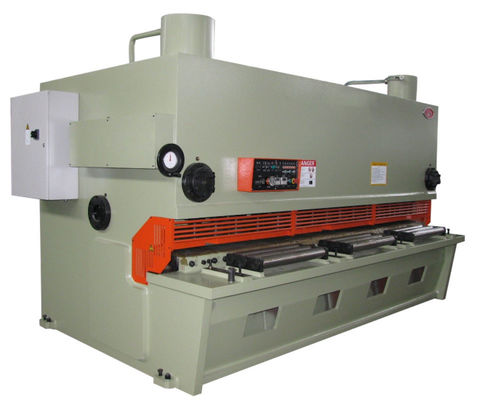

The guillotine shear is the fruit of a project resulting in our bringing together ‘Made in China’ creativity, design and innovation with all the reliability of the best Chinese and European component range. The result is a perfect mix of avant-garde and efficient technology, guarantee of an extremely solid machine, precise with its cuts and of extremely high quality.
Shears features a rigid frame for min deflection under the load. The frame steels are German origin and designed using SOLIDWORKS 3D programming and made with quality steel Improved Q235 using the latest technology.
Adopted fully welded frame,vibration eliminated stress,high rigidity ,hydraulic driving system,nitrogen cylinder return system,sturdy and durable,blade gap adjustment device and fine adjustment can be easily operated ,shadow line for good cutting,photocells at rear parts of machines as protection guard to the operator and other people ,backgauge stroke will be controlled and showed by E21 NC ,backgauge come with reducer box
Single or continuous stroke is at your option,electric door open,machine will stop working,oil tank and electric cabinet door come with rubber seals,throat come with cover
Front support plate come with balls ,thus ,facilitate feeding plate
| model | cutting length (mm) | cutting thickness (45 Kgs/mm2) | cutting thickness (70kkgs/mm2 | rake angle(fixed) | No. of strokes/min | throat depth | Nos of hold down jacks | back gauge stroek |
back gauge (X)dimension (mini cutting strip) |
motor power (KW) |
oil capacity | length*height *width | height under floor | approx weight (T) |
| QC12Y-4*2000 | 2000 | 4 | 2 | 1°30′ | 15 | 140 | 11 | 600 | 20 | 7.5 | 184L | 2590*1520*1450 | 650 | 3.3 |
| QC12Y-4*2500 | 2500 | 4 | 2 | 1°30′ | 15 | 140 | 12 | 600 | 20 | 7.5 | 230L | 3140*1520*1450 | 650 | 4.2 |
| QC12Y-4*3200 | 3200 | 4 | 2 | 1°30′ | 11 | 140 | 13 | 600 | 20 | 7.5 | 300L | 3840*1520*1450 | 650 | 5.3 |
| QC12Y-6*2000 | 2000 | 6 | 3 | 1°30′ | 18 | 140 | 11 | 600 | 20 | 7.5 | 184L | 2490*1610*1620 | 800 | 4.6 |
| QC12Y-6*2500 | 2500 | 6 | 3 | 1°30′ | 15 | 140 | 12 | 600 | 20 | 7.5 | 230L | 3140*1610*1650 | 800 | 5 |
| QC12Y-6*3200 | 3200 | 6 | 3 | 1°30′ | 14 | 140 | 13 | 600 | 20 | 7.5 | 300L | 3840*1610*1650 | 800 | 6.8 |
| QC12Y-6*4000 | 4000 | 6 | 3 | 1°30′ | 9 | 140 | 18 | 600 | 20 | 11 | 380L | 4650*1660*1750 | 800 | 8 |
| QC12Y-6*5000 | 5000 | 6 | 3 | 1°30′ | 6 | 140 | 22 | 600 | 20 | 15 | 650L | 5725*2160*1900 | 800 | 14 |
| QC12Y-8*2500 | 2500 | 8 | 4 | 1°30′ | 14 | 140 | 12 | 600 | 20 | 11 | 230L | 3140*1610*1650 | 800 | 5.2 |
| QC12Y-8*3200 | 3200 | 8 | 4 | 1°30′ | 12 | 140 | 13 | 600 | 20 | 11 | 300L | 3840*1610*1650 | 800 | 7.2 |
| QC12Y-8*4000 | 4000 | 8 | 4 | 1°30′ | 9 | 140 | 18 | 600 | 20 | 11 | 380L | 4650*1660*1750 | 800 | 8.5 |
| QC12Y-10*2500 | 2500 | 10 | 5 | 1°48′ | 13 | 140 | 11 | 800 | 20 | 15 | 220L | 3370*2100*1790 | 800 | 8.2 |
| QC12Y-10*3200 | 3200 | 10 | 5 | 1°48′ | 11 | 140 | 13 | 800 | 20 | 15 | 260L | 4070*2100*1790 | 800 | 9.5 |
| QC12Y-10*4000 | 4000 | 10 | 5 | 1°30′ | 9 | 140 | 15 | 800 | 20 | 18.5 | 300L | 4920*2250*2050 | 800 | 11 |
| QC12Y-12*2500 | 2500 | 12 | 6 | 1°48′ | 12 | 140 | 11 | 800 | 20 | 18.5 | 220L | 3370*2100*1790 | 800 | 7.5 |
| QC12Y-12*3200 | 3200 | 12 | 6 | 1°48′ | 11 | 140 | 13 | 800 | 20 | 18.5 | 260L | 4070*2100*1790 | 800 | 8.5 |
| QC12Y-12*4000 | 4000 | 12 | 6 | 1°30′ | 9 | 140 | 15 | 800 | 20 | 18.5 | 300L | 4920*2250*2050 | 800 | 11.5 |
| QC12Y-16*2500 | 2500 | 16 | 8 | 2° | 10 | 180 | 11 | 800 | 20 | 22 | 460L | 3300*2270*2150 | 800 | 12.5 |
| QC12Y-16*3200 | 3200 | 16 | 8 | 2° | 6 | 180 | 13 | 800 | 20 | 30 | 510L | 4000*2270*2100 | 800 | 14 |
| QC12Y-16*4000 | 4000 | 16 | 8 | 2° | 6 | 180 | 15 | 800 | 25 | 30 | 510L | 4800*2270*2100 | 800 | 16 |
| QC12Y-20*2500 | 2500 | 20 | 10 | 2° | 6 | 180 | 11 | 800 | 20 | 30 | 460L | 3300*2270*2250 | 800 | 15.5 |
| QC12Y-20*3200 | 3200 | 20 | 10 | 2° | 6 | 180 | 13 | 800 | 30 | 30 | 510L | 4000*2270*2100 | 800 | 15.8 |
| QC12Y-20*4000 | 4000 | 20 | 10 | 2°30′ | 5 | 180 | 14 | 915 | 30 | 37 | 800L | 4840*3190*2400 | 910 | 22 |
